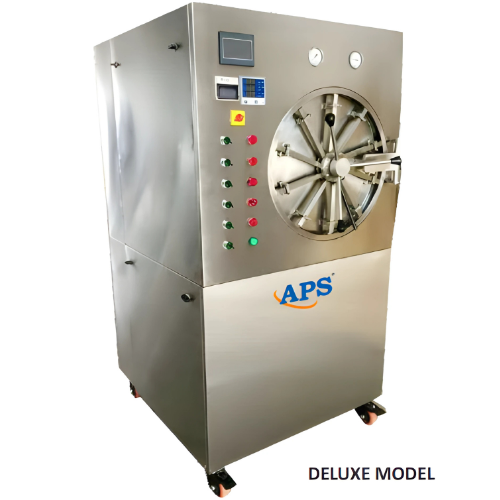

Horizontal Steam Sterilizer
Precision Autoclaves for Bulk Laboratories & Hospitals

Applications:

• Bulk sterilization of laboratory media
• Hospital sterilization applications
• Sterilization of microbiological and viral samples
• General research laboratories requiring high-precision sterilization

Features:

• Cylindrical triple-walled horizontal autoclave mounted on sturdy MS tubular stand
• Inner chamber, door lid, jacket, boiler, and outer jacket cover made of SS 304
• Steam generated in a separate boiler placed below main body
• Pressure locking system prevents door opening during operation
• Single hinged door with manual radial locking system made of mild steel nickel coated
• Energy-efficient industrial-grade heaters to reduce power consumption
• High-grade fiber/mineral glass wool insulation between jacket and outer wall
• Fitted with jacket pressure gauge, compound chamber gauge, spring-loaded safety valve, and steam release valve
• Automatic vacuum breaker for condensation vacuum relief
• Automatic pressure control switch cuts off heater at 18-20 psi
• Low water level cut-off device for element safety
• Digital PID temperature indicator cum controller with LED display, auto timer, and alarm at cycle end
• Manual multiport valve for steam injection, dry sterilization, and exhaust
• High-tensile silicon gasket ensures perfect sealing of door and chamber
• SS baffle plate ensures uniform steam distribution and prevents direct steam hitting samples
• Validation port for process verification
• Chamber condensate line with steam trap for optimum condensation
• Plug screen prevents line choking from sediment
• SS bottom plate prevents sample contact with condensate
• Water level indicator glass and replaceable heaters
• Hydraulically tested at 40 psi (2.5x operating pressure)
• Small units operate on 230V single-phase; larger units on 440V three-phase
