Steam Sterilizer Vertical (High Pressure)
Triple Walled with Radial Locking
Medical Grade
Certified Quality
Professional Use
Product Details

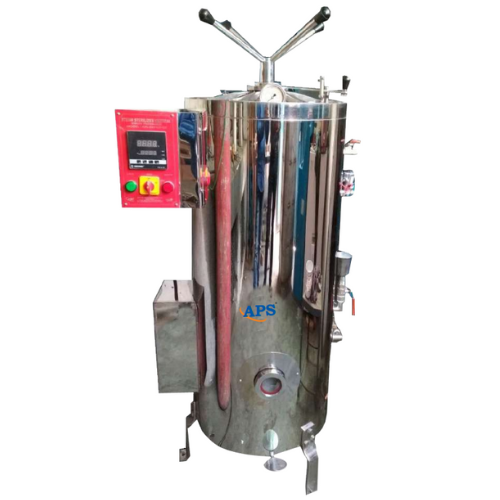

APS® Steam Sterilizer Vertical (High Pressure)
Category: Hospital Sterilization Equipment
Type: Vertical High Pressure Steam Sterilizer
Features:
- Used for sterilization under saturated steam pressure at adjustable levels between 15 to 22 psi
- Working temperature of 121°C
- Triple walled construction with inner chamber and boiler made of SS 304/SS 316 (as per demand)
- Outer wall covered with stainless steel sheet
- Thick stainless steel lid tightened by radial locking system
- Pedal lifting device for user comfort
- Jointless neoprene rubber gasket for perfect sealing
- Hydraulically tested up to 40 psi for safety
- Equipped with water level indicator, pressure gauge, steam release cock, spring loaded safety valve, vacuum breaker, pedal lifting device, and heating element
- Space between boiler and outer shell provides air insulation (mineral glass wool insulation available on demand)
- Specially designed heating elements for optimum sterilization time
- Supplied complete with stainless steel basket, cord, and plug
- Operates on 220/230V A.C. supply
Available Models:
| MODEL | CAPACITY LTRS | HEATER LOAD | INNER DIMENSIONS MM |
|---|---|---|---|
| APS-SSV-HP-20 | 20 | 1.5 kW | 250 x 450 |
| APS-SSV-HP-40 | 40 | 2 kW | 300 x 550 |
| APS-SSV-HP-50 | 50 | 3 kW | 350 x 550 |
| APS-SSV-HP-85 | 85 | 4 kW | 400 x 600 |
| APS-SSV-HP-100 | 100 | 5 kW | 450 x 600 |
| APS-SSV-HP-150 | 150 | 6 kW | 450 x 900 |
