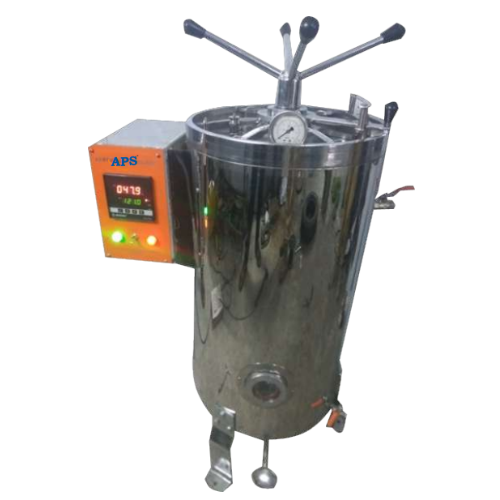

Vertical Steam Sterilizer
Precision Autoclaves for Laboratory Sterilization

Applications:

• Sterilization under saturated steam pressure
• Laboratory sterilization of instruments and media
• Hospitals and research facilities requiring high-precision sterilization
• Industrial sterilization processes

Features:

• Sterilization under adjustable saturated steam pressure from 15 to 22 psi (higher pressure up to 22 psi)
• Working temperature of 121°C
• Double-walled units with inner chamber (boiler) made of SS 304 or SS 316
• Outer wall covered with stainless steel sheet
• Thick stainless steel lid tightened with radial locking system, liftable through pedal device
• Joint-less neoprene rubber gasket for perfect sealing
• Hydraulically tested up to 40 psi for safety
• Standard accessories include water level gauge, pressure gauge, steam release cock, spring-loaded safety valve, vacuum breaker, pedal lifting device, and heating element
• Space between boiler and outer shell acts as air insulation (mineral glass wool optional)
• Specially designed water heaters ensure optimum sterilization time per cycle
• Supplied with stainless steel basket, cord, and plug
• Operates on 220/230 Volts AC supply

Available Models:
